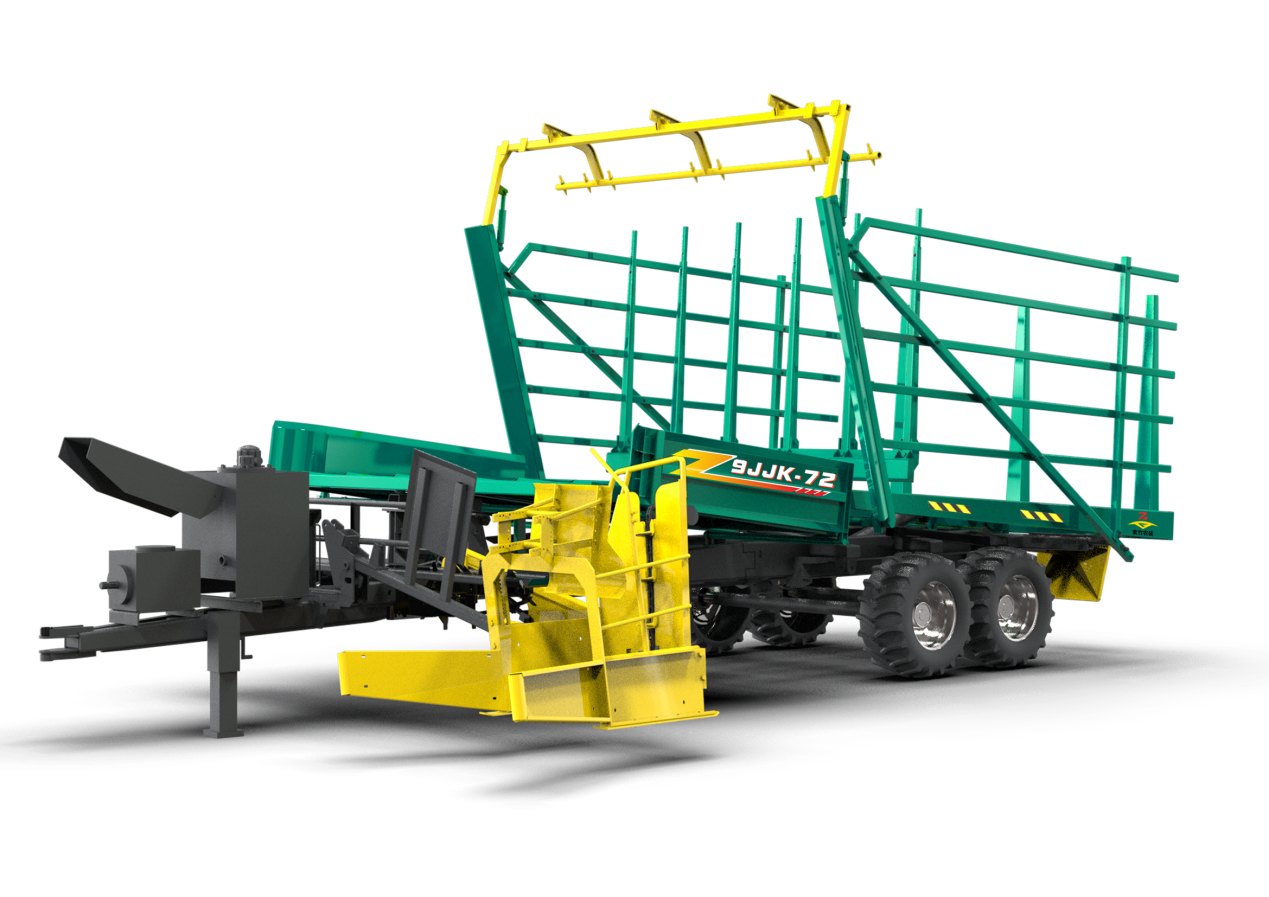

The newly produced Square Bale Picking and Stacking Machine by Liaoning Zizhu Intelligent Agricultural Equipment Co., Ltd has broken the traditional methods of manual bale picking, stacking and loading. Through the front picking mechanism, rear traveling mechanism, upper flipping and loading mechanism, hay pushing device, hay pressing device and electrical-hydraulic system of the machine, it realizes automatic picking and stacking of the square bales.

    The pickup mechanism is bucket-shaped with the opening facing forward. It picks up bales from the ground through the vertical transmission chain inside the picking mechanism. The first flipping platform is a horizontally placed flat plate, while the secondary flipping platform and the loading platform are flat and placed at an incline.



Parameter Items	9JJK-72 Square Bale Picking and Stacking Machine
Structure Type	Flipping Platform
Pickup Type	Hydraulic drive, clamping
Number of Platforms and Motion Control Method	3, hydraulic control
Outline Dimensions (Length*Width*Height) mm	7900×3000×3400
Drive Type	Towing type
Rated Load Capacity	3000
Minimum Ground Clearance	310
Tire Model and Quantity	LT265/75R16, 4
Wheel Track	1930
Wheelbase	880
Supporting Power	65～110
Input Speed	≤540
Input Power Source	12V DC
Operating Speed	5～10
Maximum Climbing Angle	10°
Bale Dimensions (Length*Width*Height) mm	(900～1000)×600×400(72bales)
	(900～1000)×460×360(108bales)
