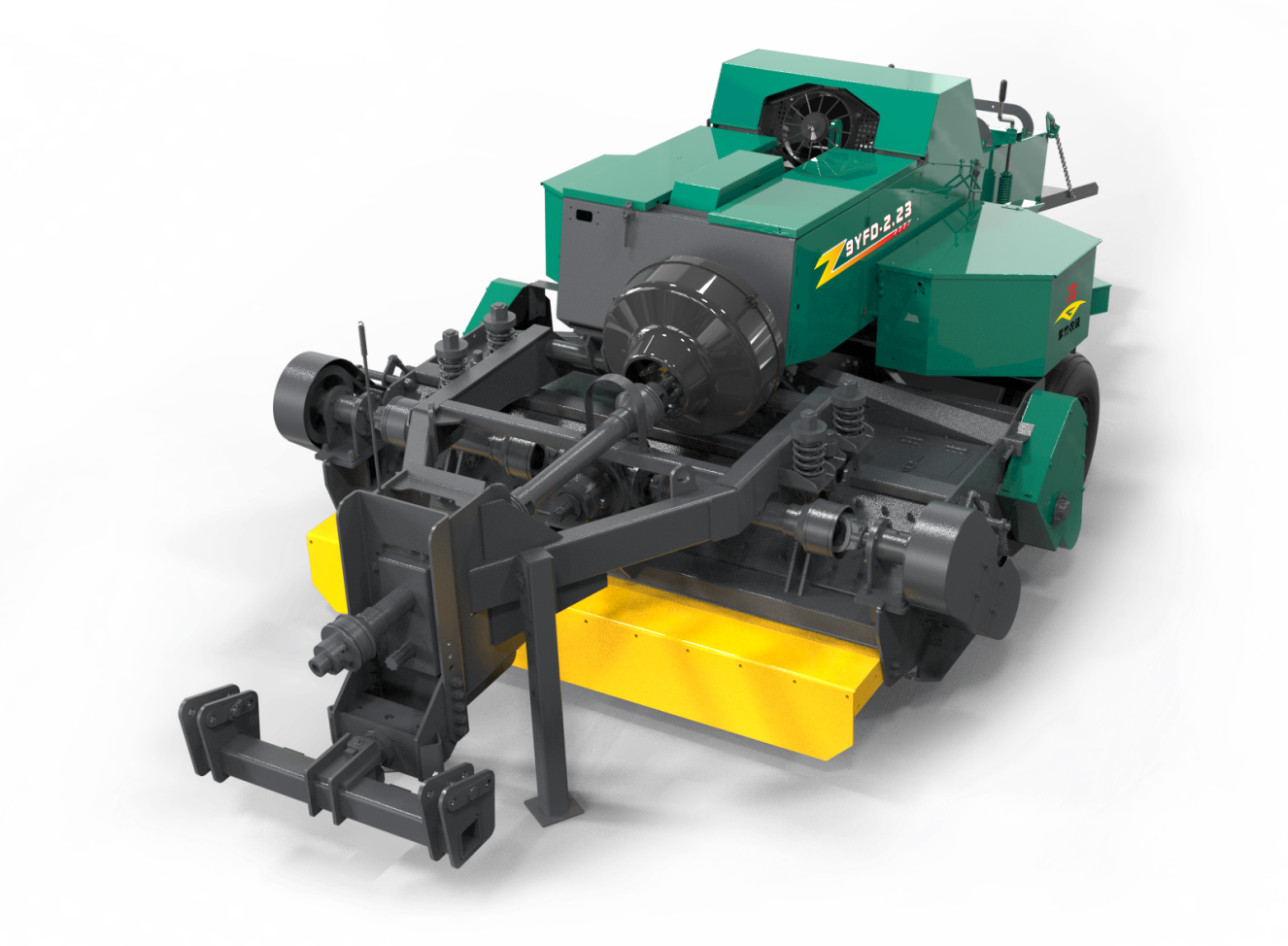

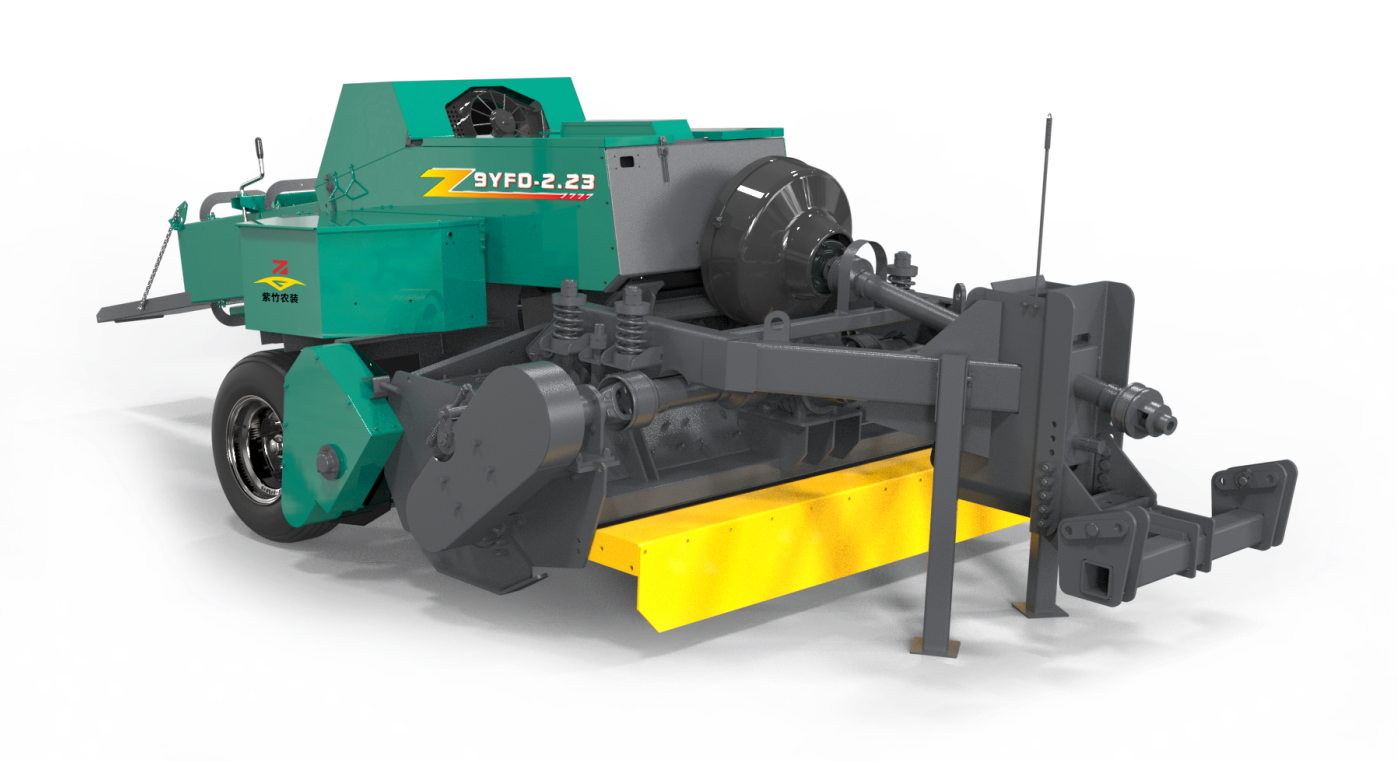

The latest research and development of the crushing and baling machine produced by Liaoning Zizhu Smart Agricultural Equipment Co., Ltd. can complete the harvesting and baling of crop straw such as corn, sorghum, rice, soybeans, wheat, and forage under the traction of a tractor.

This machine has the following features:

1. Harvest, crush, and bale scattered, upright, and laid-out straw in the field, with a wide range of applications;

2. Equipped with a reinforced knotter imported from Germany, it boasts stable performance, high reliability, long service life, and a high bale formation rate;

3. The pickup adopts a floating structure to reduce vibration to the entire machine during operation, ensuring more stable operational performance;

4. Sealing devices have been added to the bushings and bearings in key areas, reducing the damage from dust to the bushings and significantly lowering the equipment failure rate;

5. The bearings in key parts are imported, lubrication-free, and maintenance-free. This reduces equipment maintenance time, improves equipment production efficiency, and lowers equipment operating costs;

6. Equipped with a dual bale electronic counter display with permanent memory function, facilitating the replacement and maintenance of expired parts;

7. The crushing section adopts a dual gearbox transmission structure, ensuring a more reasonable transmission of power.

Parameter Items	Unit	9YFD-2.23
Overall Dimensions (Length × Width × Height)	(mm)	5780×2740×1770
Total Weight	(kg)	2950
Pickup Width	(mm)	2230
Supporting Power	(kW)	66～135
Knotter Type	/	D-type
Number of Knotters	(Piece)	2
Power take-off output speed PTO	(r/min)	720
Cross-sectional Dimensions of Compression Chamber (Length × Width)	(mm)	460×360
Bale Length	(mm)	Adjustable from 300 to 1300
Number of Reciprocations of Baling Piston	(r/min)	100
Bale Density	(r/min)	Spring-pressed manual adjustment
Twine Box Capacity (rolls)	/	10
Working Efficiency (mu/hour)	/	10～20
